7720 Pump

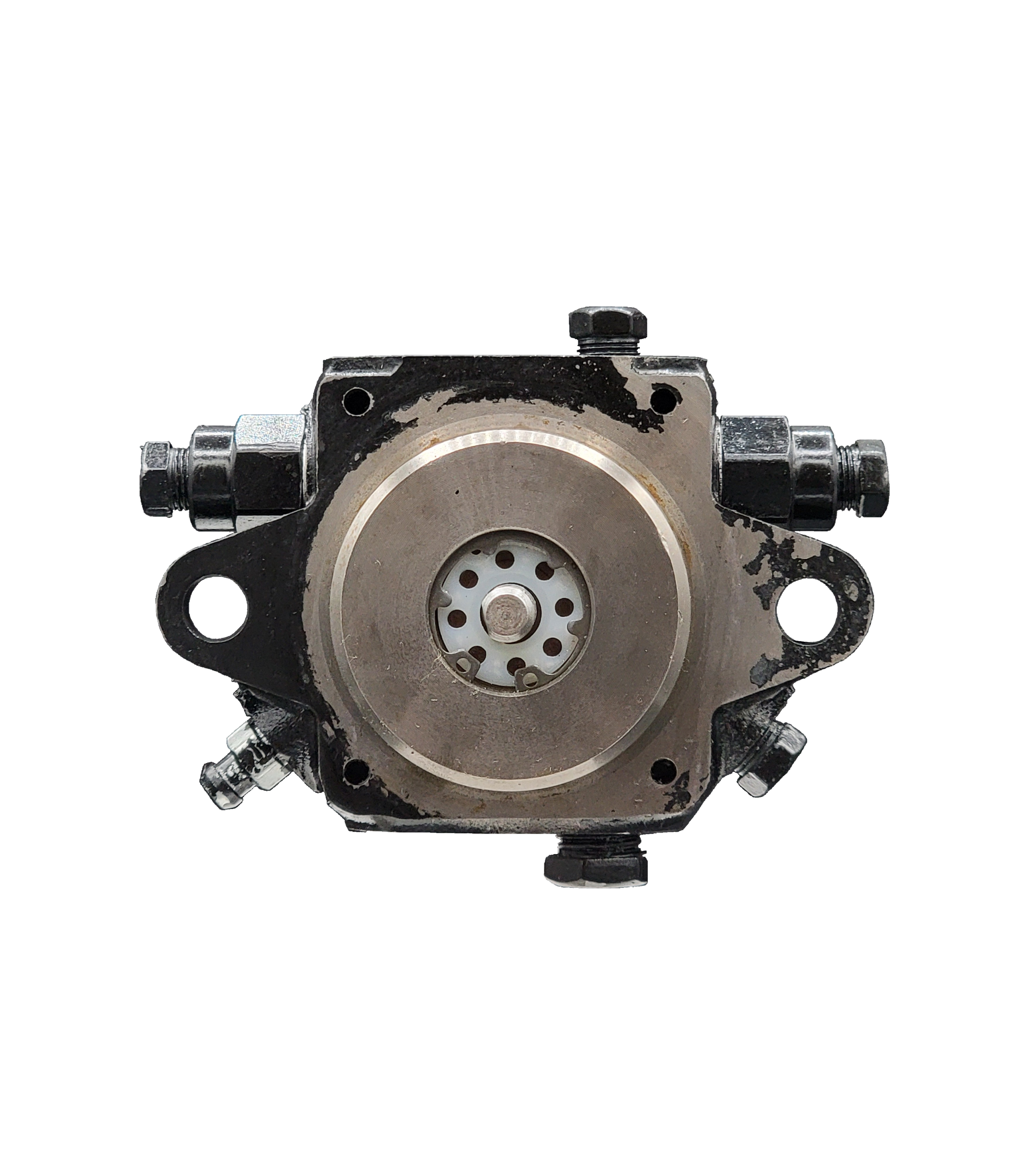

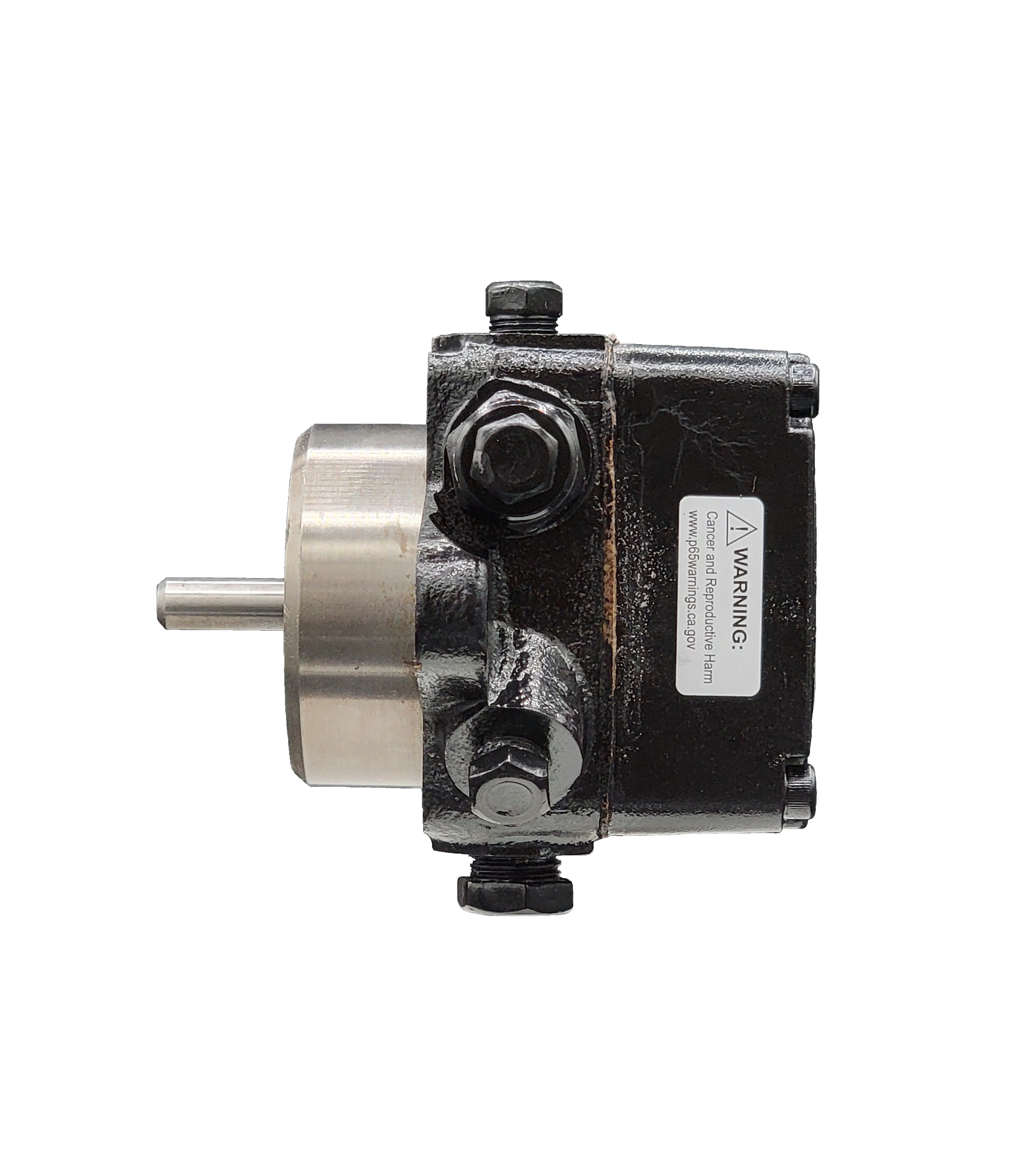

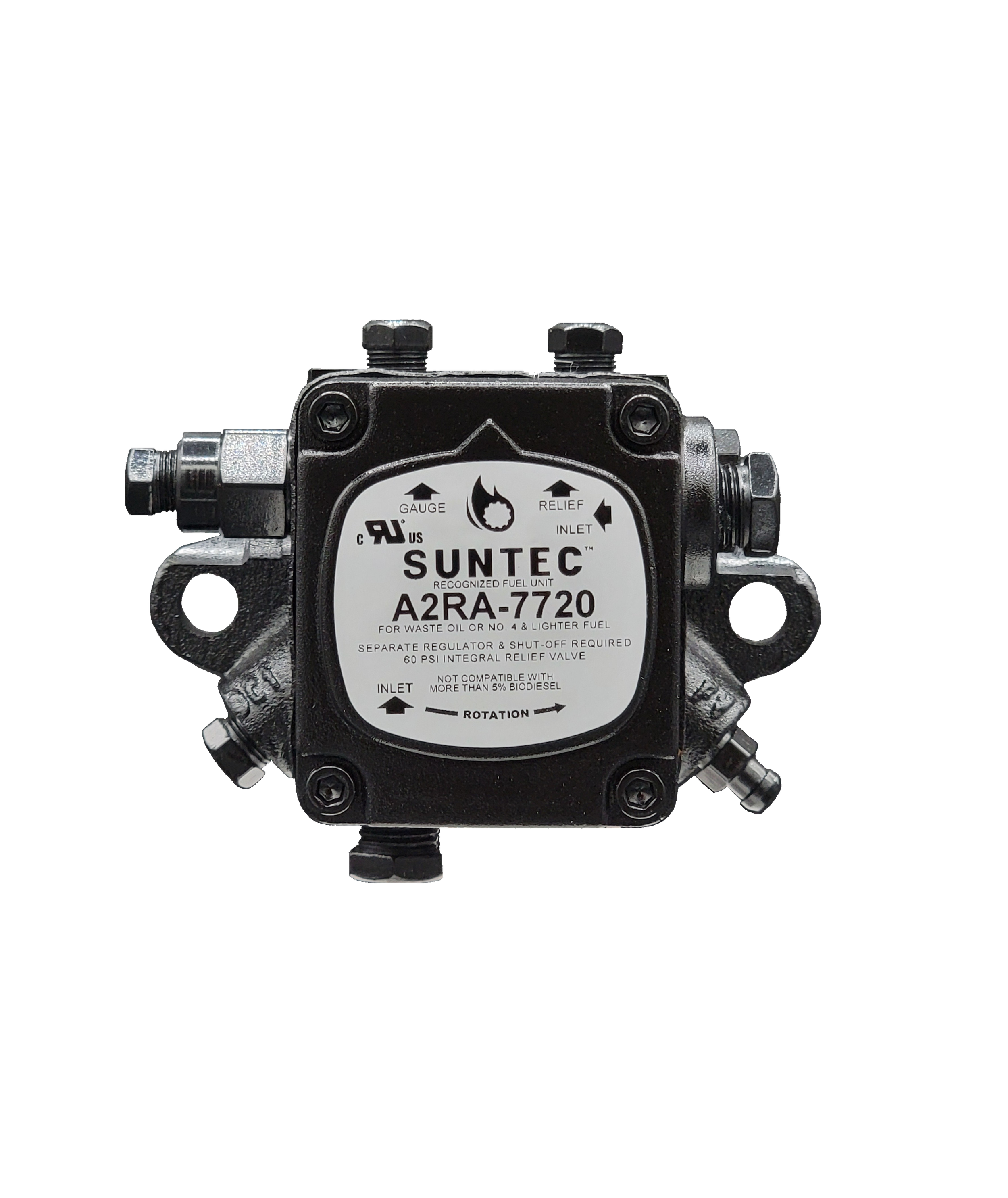

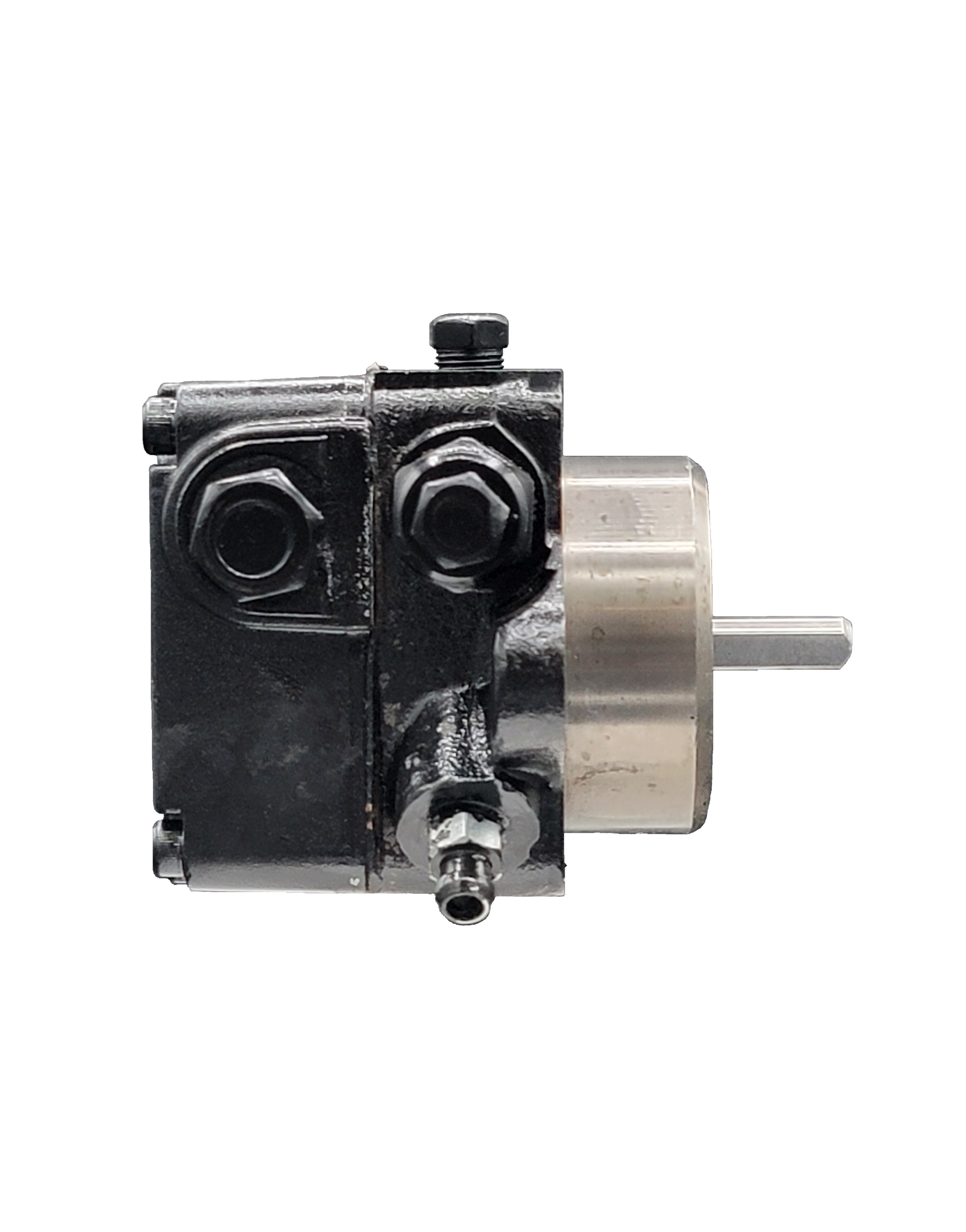

Suntec A2RA-7720 A-pump with 5/16 input shaft, ¼” FPT inlet and 1/8” FPT outlet connections. Used to deliver waste oil to furnace via a fixed speed (metered) motor. Pump requires a check valve on the outlet side of pump and a non-leaking suction system on the inlet side of pump. Commonly used with newer Clean Burn burners. Pump contains a built-in pressure relief valve that is plumbed via a 1/8” FPT outlet on the pump.
MPN: 32475
Designed for waste oil furnaces to ensure reliable performance.Suntec A2RA-7720 A-pump with 5/16 input shaft, ¼” FPT inlet and 1/8” FPT outlet connections. Used to deliver waste oil to furnace via a fixed speed (metered) motor. Pump requires a check valve on the outlet side of pump and a non-leaking suction system on the inlet side of pump. Commonly used with newer Clean Burn burners. Pump contains a built-in pressure relief valve that is plumbed via a 1/8” FPT outlet on the pump.
MPN: 32475
Designed for waste oil furnaces to ensure reliable performance.Suntec A2RA-7720 A-pump with 5/16 input shaft, ¼” FPT inlet and 1/8” FPT outlet connections. Used to deliver waste oil to furnace via a fixed speed (metered) motor. Pump requires a check valve on the outlet side of pump and a non-leaking suction system on the inlet side of pump. Commonly used with newer Clean Burn burners. Pump contains a built-in pressure relief valve that is plumbed via a 1/8” FPT outlet on the pump.
MPN: 32475
Designed for waste oil furnaces to ensure reliable performance.
